More Details
Short charging time and savings
- Faster charging with up to 7.4kW

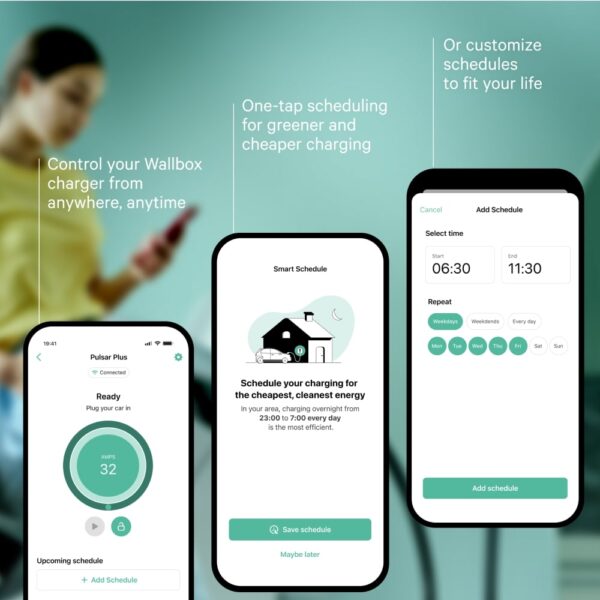

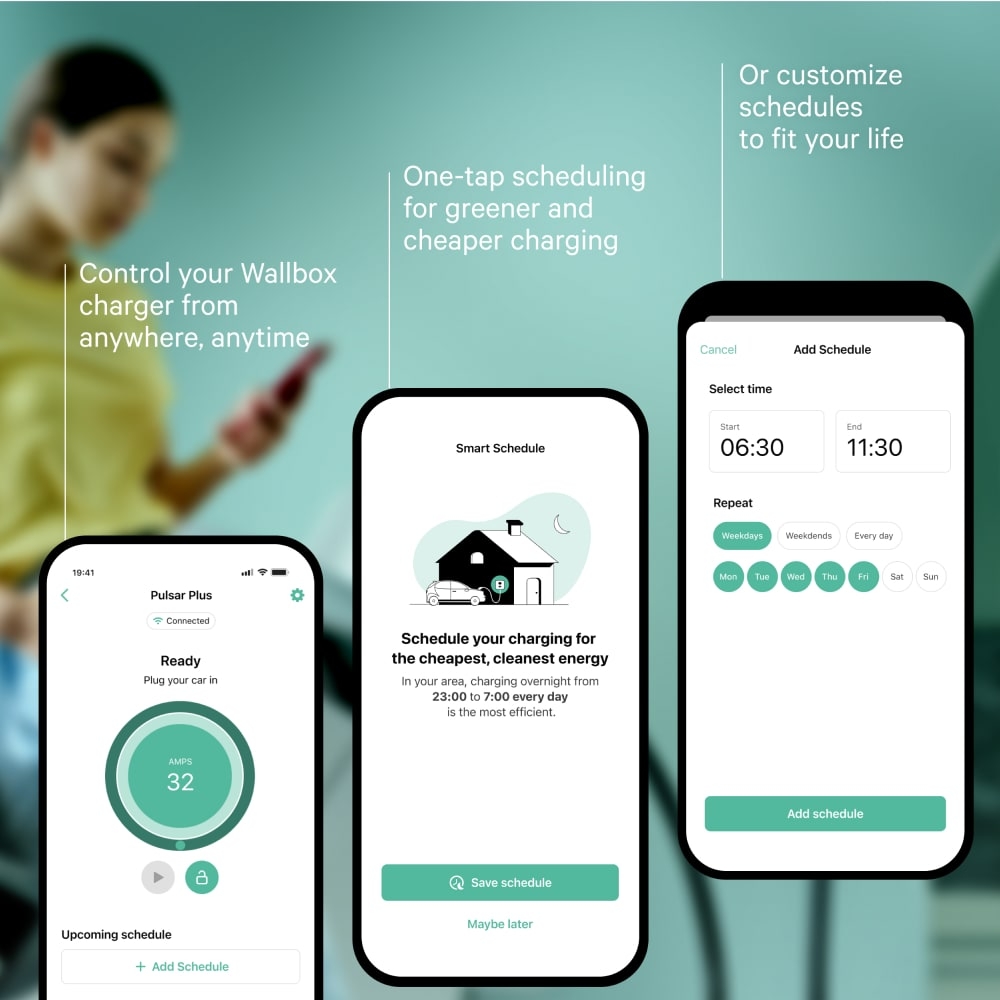

- Smart scheduling for energy and cost savings

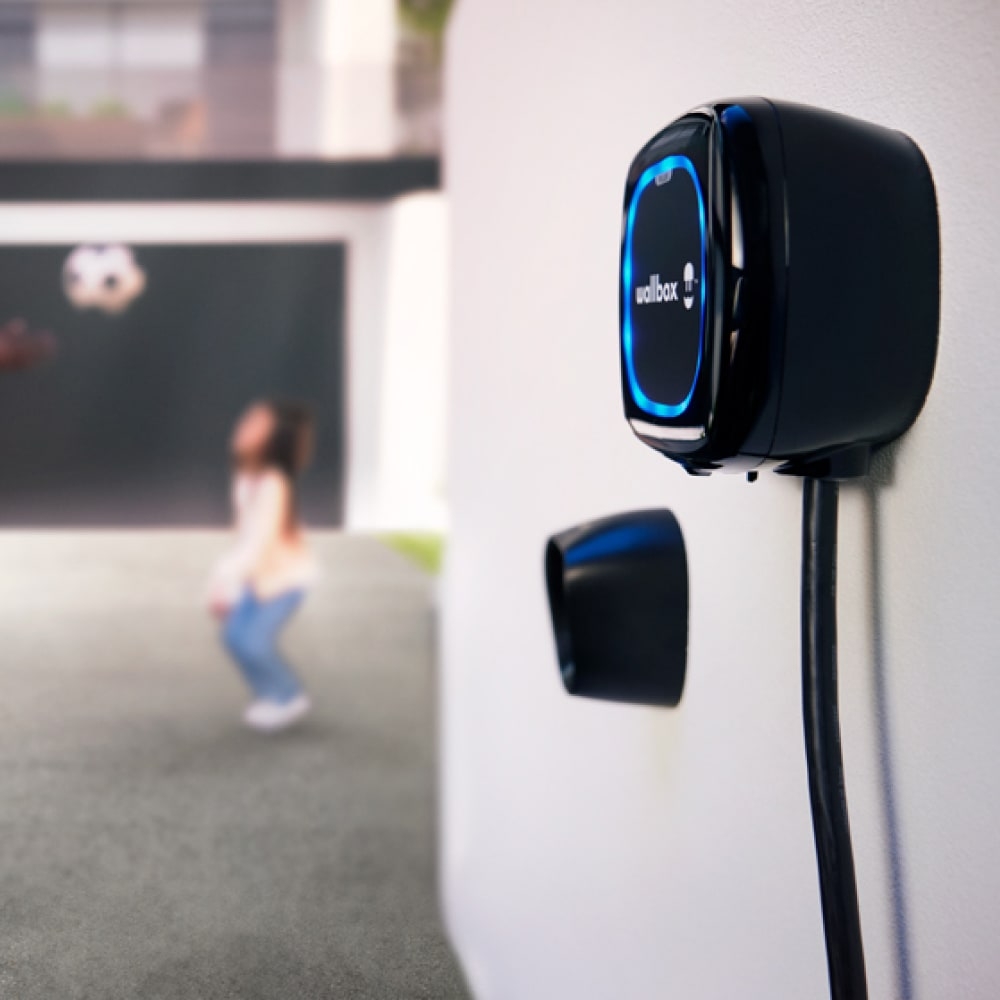

- Easy indoor and outdoor installation
- Voice control enabled with Amazon Alexa and Google Assistant devices
- Integrated PEN fault protection. No earthing rod needed.
- Compatible with all Wallbox Energy Management Solutions, including Eco-Smart solar EV charging, Power Boost dynamic load balancing and Power Sharing
| Connector type | Type 2 |
|---|---|
| Maximum current | 32 A |
| DC leakage protection | DC leakage protection”>Yes |
| User interface | myWallbox Portal|Wallbox App |
| Overvoltage Category | CAT III |
| Storage temperature | From -40ºC to 70ºC |
| RCCB | Requires an external RCCB |
| Nominal frequency | 50 Hz / 60 Hz |
| Degree of protection | IP54 / IK08 |
| Operating temperature | From -25 ºC to 40 ºC |
| Maximum output | 7.4kW / 22kW |
| Input voltage | 110 / 230 V AC ± 10% (1P) / 400 V AC ± 10% (3P) |
| Included features | Smart Power Sharing |

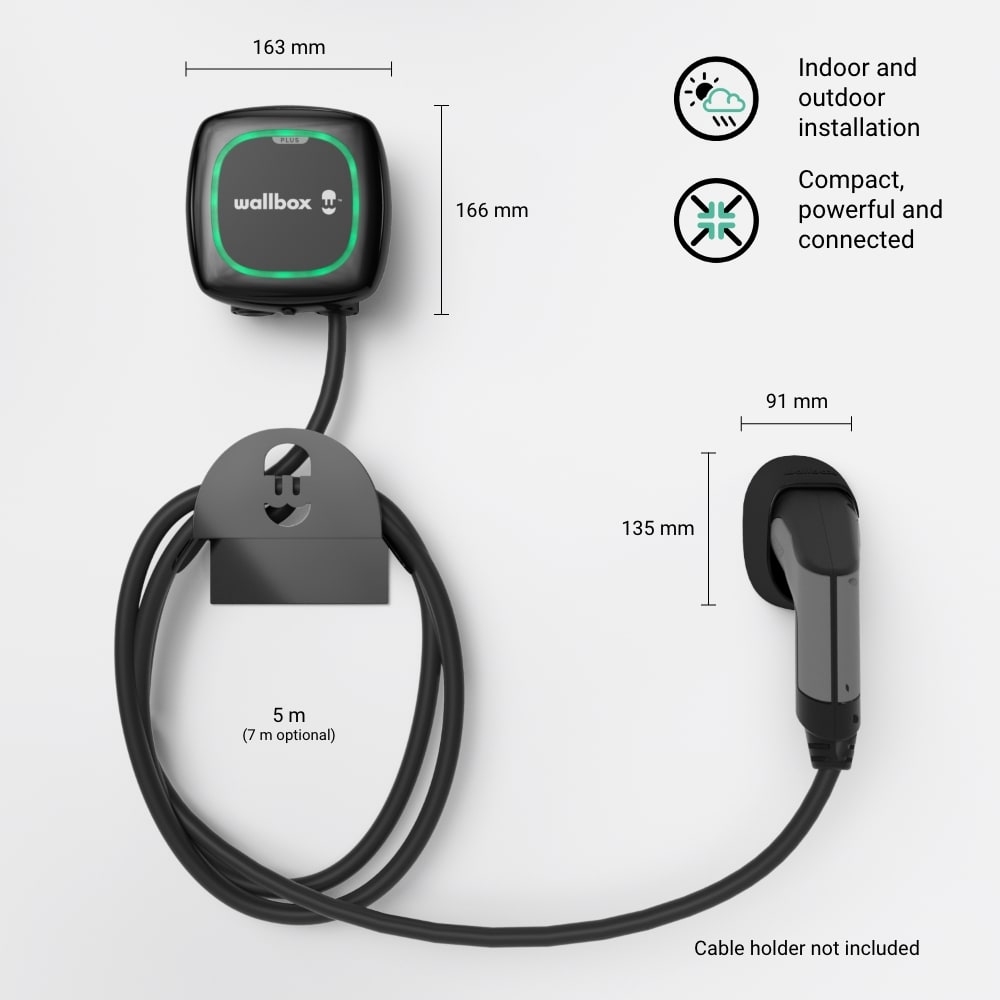

| Dimensions | 166x163x82mm |
| Charging mode | Mode 3 |
| Charger status information | Halo RGB LED|Wallbox App|myWallbox Portal |
| Important note |
